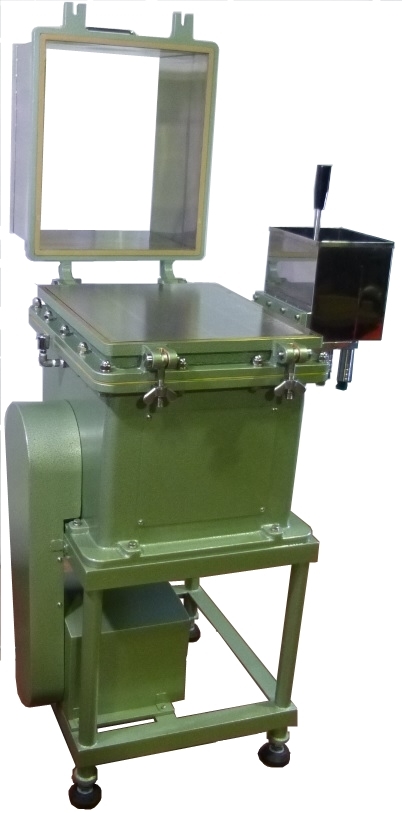

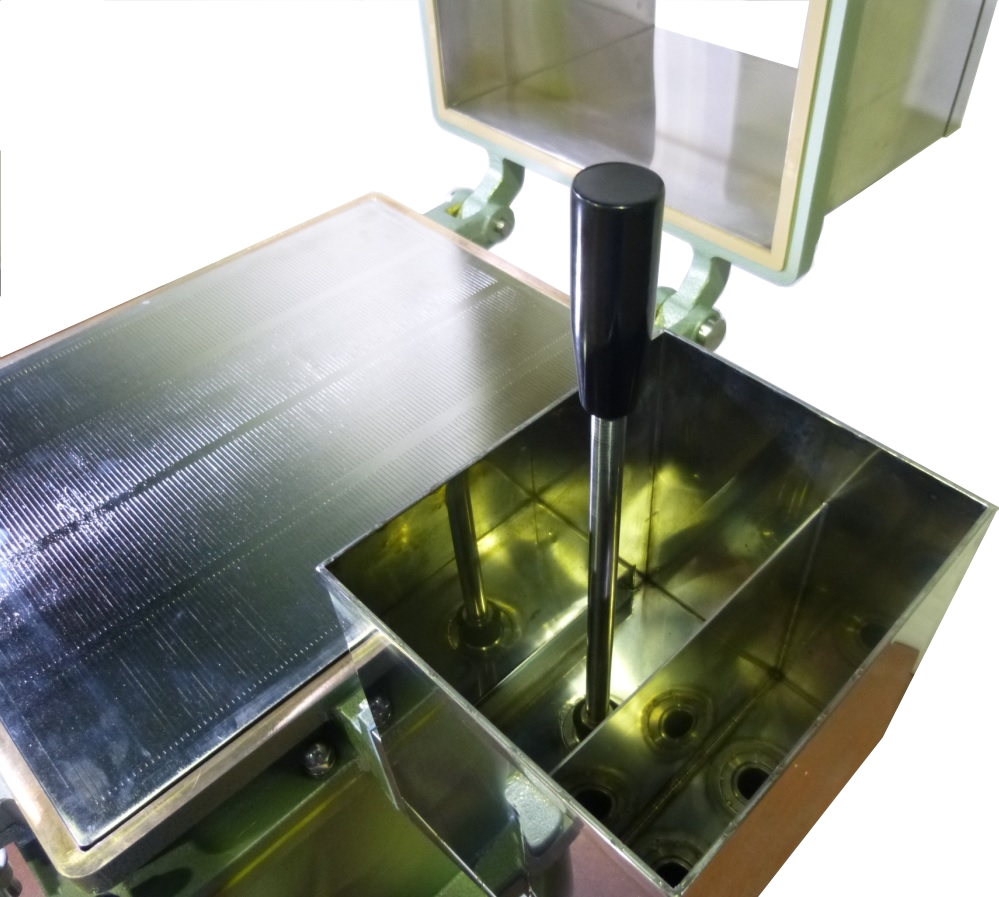

Flat screen (large sized type)

  • Pulp/Chip/Sheet former / Screening
  • Product Number No.2625

This equipment is used for refining digested pulp and measuring knots. The mechanism gives vibration to digested pulp placed inside the screen box through the bottom screen resting on the rubber diaphragm, sucks them toward the screen plate and discharges them, alternately repeating, promoting passage of digested fibers and sifting through good-quality pulp.

参考規格 :

Specifications

Screen box 430×362×300mm Screen plate slit or round hole 6/1,000” to 50/1,000” or 2 to 5mmφ
Vibration frequency of diaphragm 700/min. Amplitude 4.4mm
Gate height 100mm Power souce three-phase 200/220VAC 50/60Hz 2A
Capacity ratio standard type to large type = 1/4 Outer dimentions 710×670×1,250mm
Instrument weight 182kg
