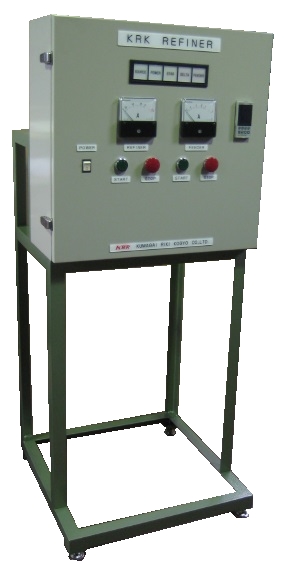

KRK continuous high-consistency refiner
- Pulp/Chip/Sheet former / Refiner/Beater/PFI
- Product Number No.2500-II
- Pulp/Chip/Sheet former / Refiner/Beater/PFI
- Product Number No.2500-II
Kumagai Law of nature machine
Industrial company > Product information > Pulp/Chip/Sheet former > Refiner/Beater/PFI > KRK continuous high-consistency refiner
This refiner, like the No.2500-I, has been developed for continuous processing for a long time of various wood chips and other diverse fiber materials. It is used in laboratories and intermediate plants.
参考規格 :
Specifications
| Specimens subject to refining | RGP,CGP,KP, straw pulp, waste paper, polyethylene, polypropylene, nylon, polyester, acryl, glass fiber, carbon fiber, hard board, corn, plant fiber, etc. | Section in contact with liquid | SUS-316 （stainless steel） |
| Interstice adjustment | 1/100mm adjustable | Crushing plate | stainless steel casting, one set includes six plates, 305mm in diameter |
| Rotation speed of main shaft | 3,000rpm （standard） | Driving motor | three-phase 200/220VAC 30kW |
| Material feeder | screw type | Motor for feeder | three-phase 200/220VAC 0.2kW steplessly variable |
| Optional | flange type material feed and recovery section, star-delta starter | Power souce | three-phase 200/220VAC 50/60Hz 107A |
| Cooling water | three-phase 200/220VAC 30kW | Outer dimentions | 850×2,000×1,250mm |
| Instrument weight | 900kg |
