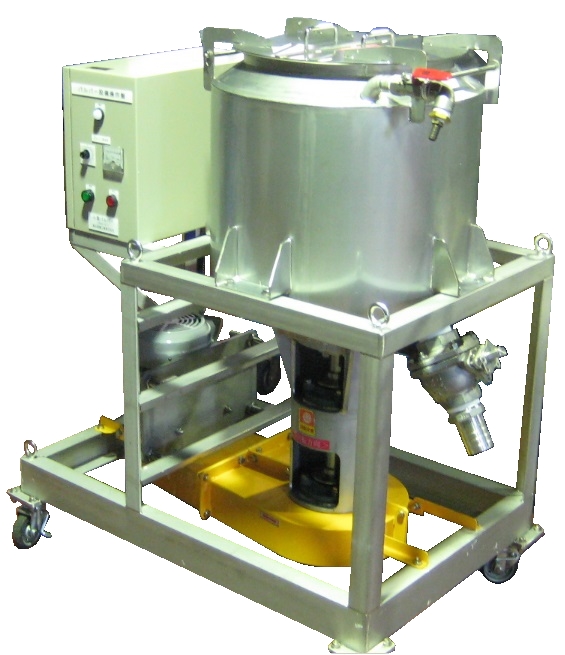

Large size pulper

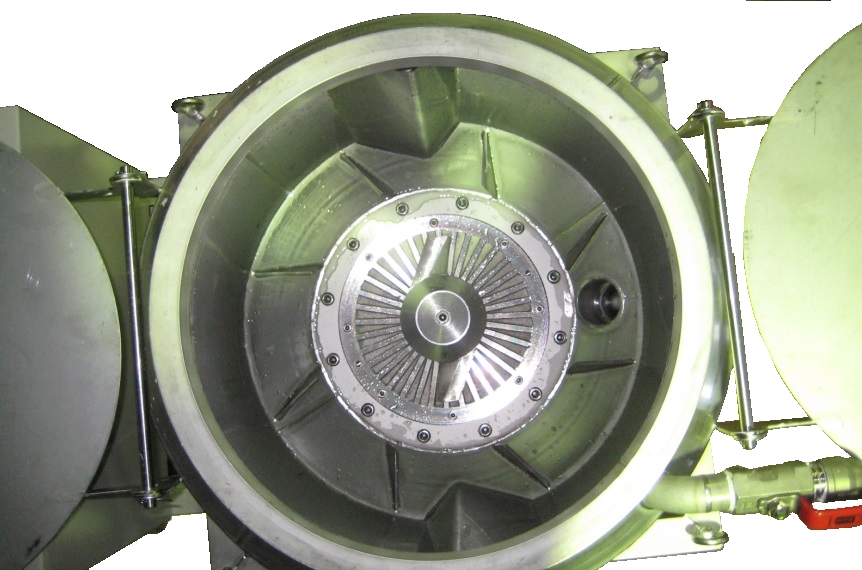

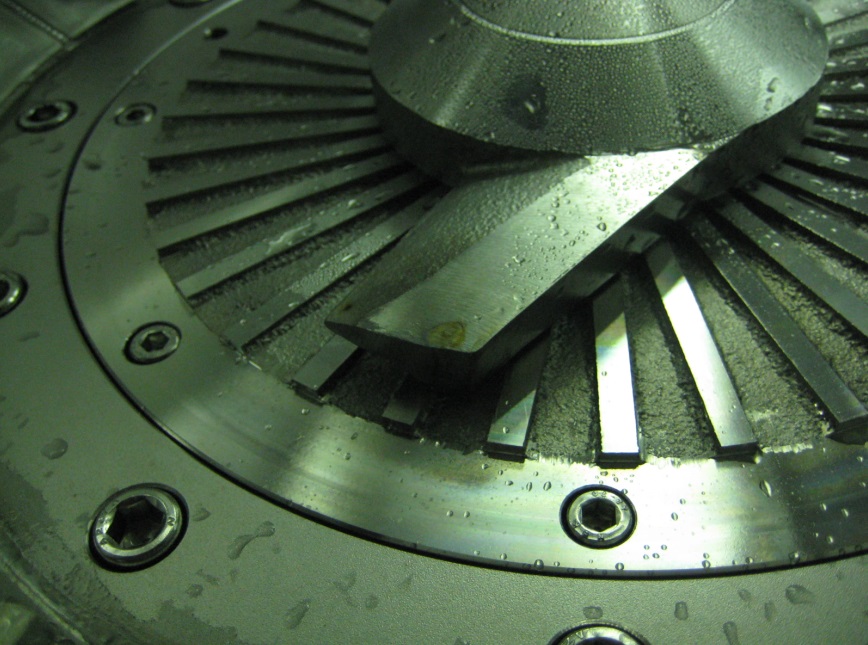

This is a small type simulating the pulper used in the paper mill. It rapidly disintegrates pulp and waste paper. For effectively circulating slurry and giving shear force, the impeller is placed on the bottom, thereby shortening disintegration time and reducing power cost.

参考規格 :

Specifications

Capacity	100 to 500L	Concentration	0.30%
Specimen	3 to 15kg	Specimen tank	made of SUS-304
Runner diameter	200 to 300mm	Rotation speed	500 to 1,300rpm
Motor	three-phase 200/220VAC 7.5kW	Optional	speed control with inverter
Power souce	three-phase 200/220VAC 50/60Hz 30A	Outer dimentions	1,200×1,500×1,800mm （500L）
Instrument weight	500 to 1,300rpm
