Centrifugal pulp dehydrator (stationary type)

  • Pulp/Chip/Sheet former / Dehydrator
  • Product Number No.2536

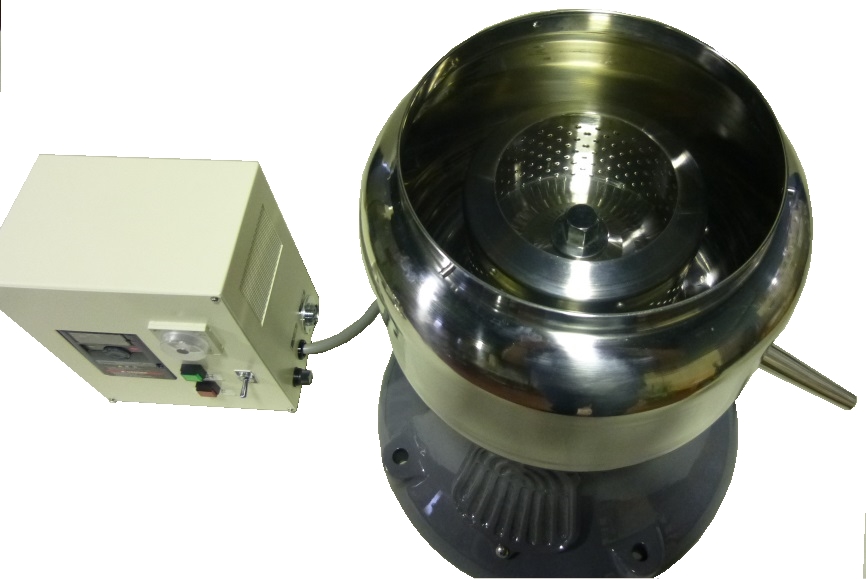

This machine dehydrates paper stock by centrifugal force. All the sections in contact with liquid are made of stainless steel (SUS-304). The basket is well balanced, free of vibration, so it operates very silently. With permanently lubricated bearings, maintenance is very easy. The brake is applied by pulling the lever.

参考規格 :

Centrifugal pulp dehydrator (stationary type) Centrifugal pulp dehydrator (stationary type) Centrifugal pulp dehydrator (stationary type)
  • Centrifugal pulp dehydrator (stationary type)
  • Centrifugal pulp dehydrator (stationary type)
  • Centrifugal pulp dehydrator (stationary type)

Specifications

Basket 150mm in diameter, 80mm deep Maximum rotation speed 3,000rpm
Motor 100/110VAC 0.1kW Optional filter cloth
Power souce 100/110VAC 50/60Hz 4A Outer dimentions 470×470×560mm
Instrument weight 30kg
