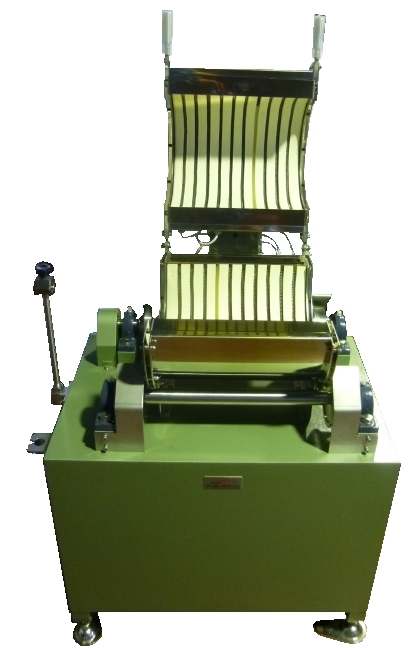

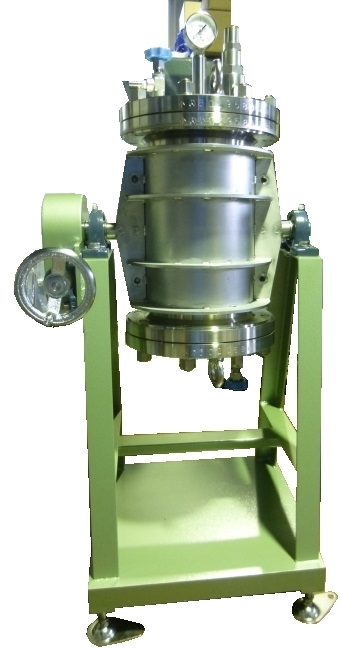

Horizontal type rotating autoclave (with program-based control)

This autoclave is used in digestion experiments on various wood chips. In order to strictly comply with the temperature setting according to a preset cooking schedule, a thermometer device is installed on the chamber body for program-based control, enabling automatic control via the control unit. This mechanism significantly contributes to higher accuracy of digestion experiments, improved reproducibility and labor saving.

参考規格 :

Horizontal type rotating autoclave (with program-based control)

Specifications

Temperature controller	digital, program-based setting temperature range: 0 to 300℃ temperature accuracy:±2％ set time: 1 min. to 99　hours/step, number of steps: max. 99 steps number of programs: max. 7 control method: PID	Temperature detector	PT 100Ω
Optional	recorder, record paper 60mm wide	Outer dimentions	autoclave: 590×450×900mm controller: 590×490×900mm reversing device: 530×420×780mm
Instrument weight	autoclave: 133kg controller: 69kg reversing device: 46kg
