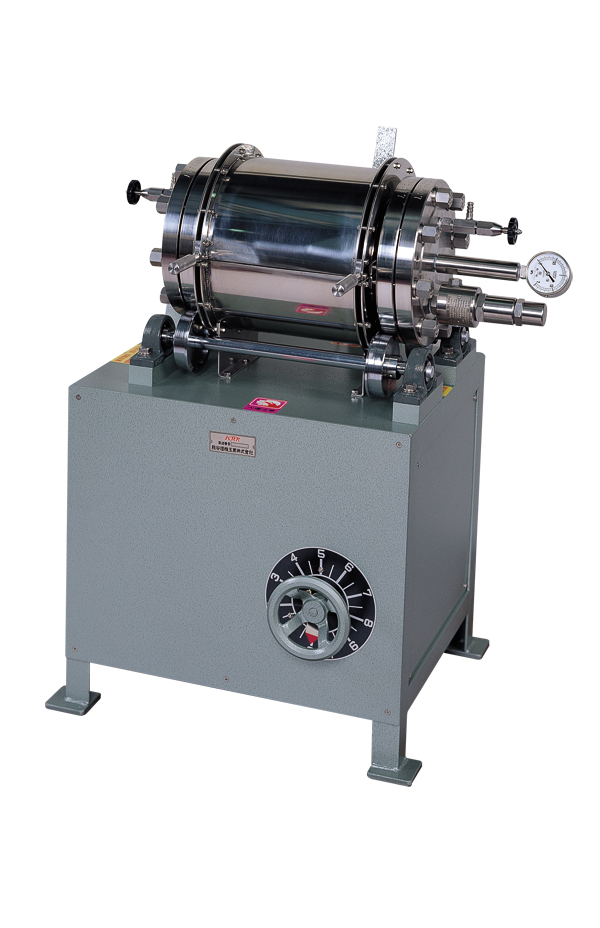

Horizontal type rotating autoclave
- Pulp/Chip/Sheet former / Auto clave
- Product Number No.2612
- Pulp/Chip/Sheet former / Auto clave
- Product Number No.2612
Kumagai Law of nature machine
Industrial company > Product information > Pulp/Chip/Sheet former > Auto clave > Horizontal type rotating autoclave
This autoclave is used in a range of chemical experiments as well as for cooking of various wood chips. It is designed to allow reactions to take place adequately and uniformly even with a very low liquid ratio, providing an advantage that allows experiments under conditions close to the site conditions. In addition, in an effort to control environmental problems, it is widely used in studies of oxygen bleaching and oxygen digestion.
参考規格 :
Specifications
| Capacity | 4, 10, 30L | Maximum pressure | 1.5MPa |
| Liquor ratio | 1: 1.5 or 1: 2 | Material of cooker | SUS-316 （molybdenium stainless steel） |
| Heating | electric furnace (divided in two parts) | Heater | 4L: single-phase 200/220VAC 20A 10L: three-phase 200/220VAC 30A 30L: three-phase 200/220VAC 60A |
| Temperature control | by slide regulator | Heater cover | SUS-304 |
| Pressure gauge | 2MPa, acid resistant | Rotation speed | 10rpm |
| Geared motor | 4L: single-phase 100V 0.1kW 10L: three-phase 200V 0.1kW 30L: three-phase 200V 0.4kW |
Optional | baffle plate for pulp agitation |
| Inspection of vessel | inspected by a third party organization according to the regulation for class 1 or small-size pressure vessels | Outer dimentions | 4L: 750×540×840mm 10L: 800×670×960mm 30L: 1,140×835×1,085mm |
| Instrument weight | 163 to 250kg |
