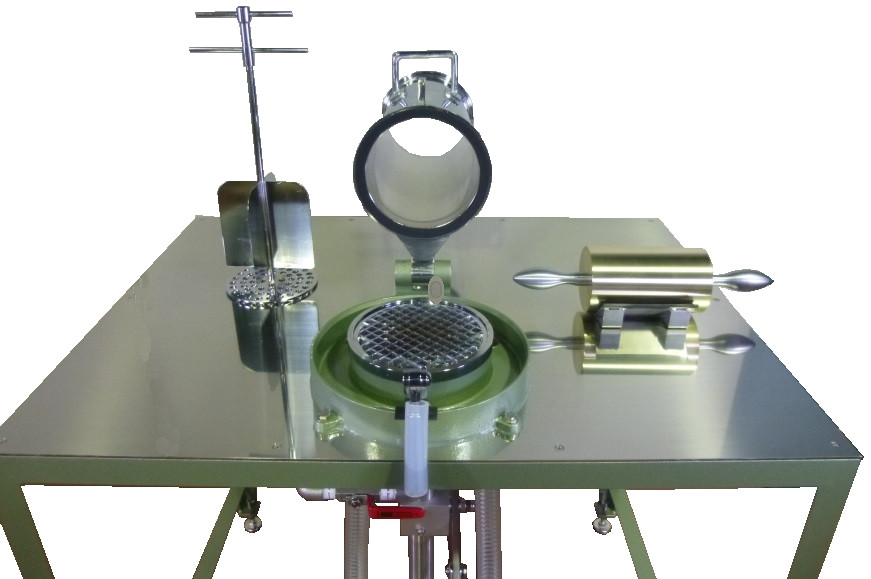

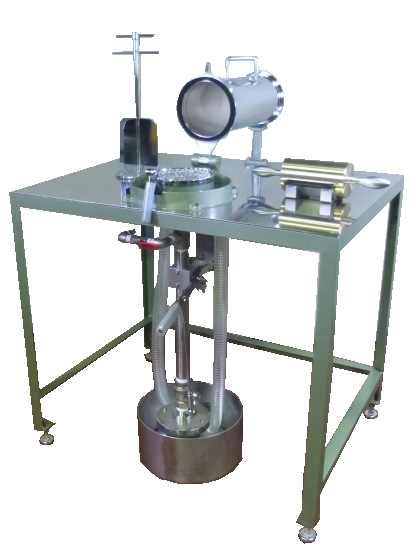

TAPPI standard sheet machine

It is necessary to make specimens in different conditions, to study how the paper characteristics are influenced by various elements including pulp material, pulping conditions, conditioning of raw materials such as beating method, filler and sizing agent. Paper making with this machine is standardized by JIS and ISO for preparing a small amount of sheets easily and rapidly. This machine is also used for measuring the drainage time according to the TAPPI standard.

参考規格 :

[JIS]P-8222-2015
[TAPPI]T205sp-12,T-221cm-22
[ISO]5269-1-2005

Specifications

Paper making size	158mm in diameter, 200c?	Wire cloth	upper 150mesh or 80mesh lower 20mesh
Drainage time (water)	4.0±0.2sec. 20℃±1℃	Accessories	agitator, couch roll, couch plate, drainage receiver, cylinder rest
Optional	mounting support, stainless steel wire cloth	Outer dimentions	1,000×750×1,400mm （with support）
Instrument weight	78kg （with support）
