Labor-saving type square sheet machine

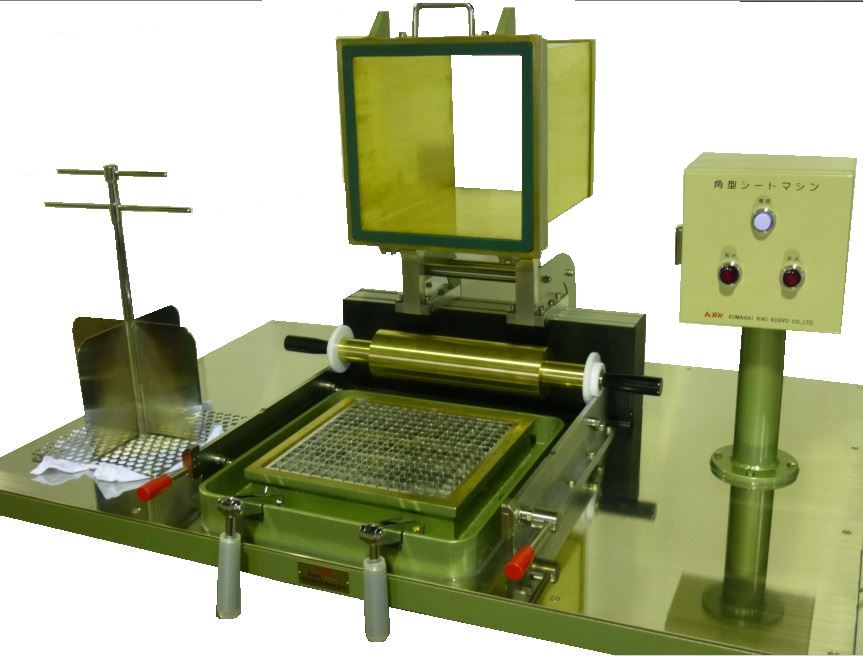

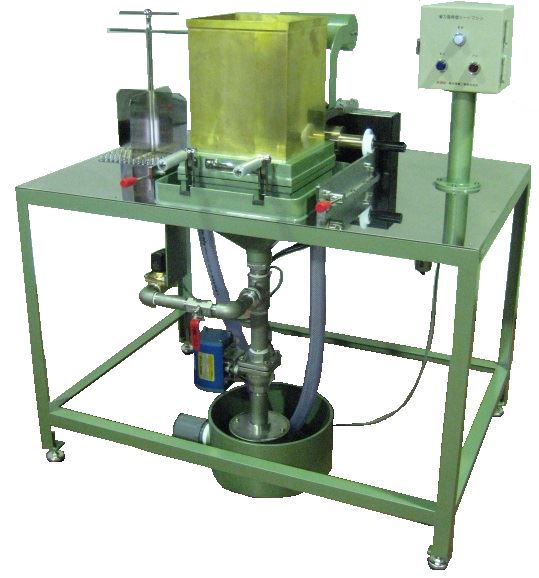

This is an improved version of the square sheet machine, for alleviating workload of the operator for couching. The couch roll is placed behind the water cylinder of sheet machine. It is taken out before couching. Place the roll to vertically move it by the up-down lever. The roll is slowly placed down on the wet mat. At the end of the paper making, the roll is returned to the storage. Since it is not necessary to lift the couch roll by hand, it is very effective to prepare many sheets.

参考規格 :

[TAPPI]T221cm-22

Specifications

Paper making size	250×250mm	Wire cloth	upper 150mesh or 80mesh lower 20mesh
Accessories	couch roll, couch plate, agitator, drainage receiver	Power source	100/110VAC50/60Hz 1A
Air source	0.5MPa	Outer dimentions	1,200×850×1,380mm
Instrument weight	250kg
