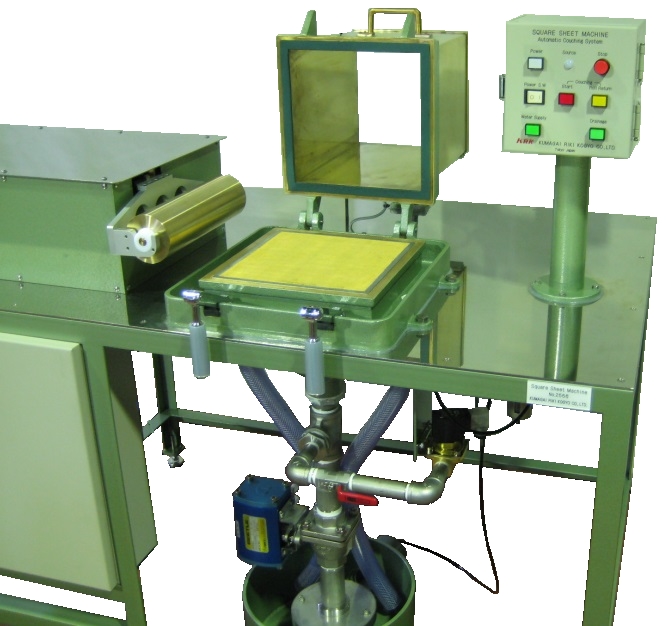

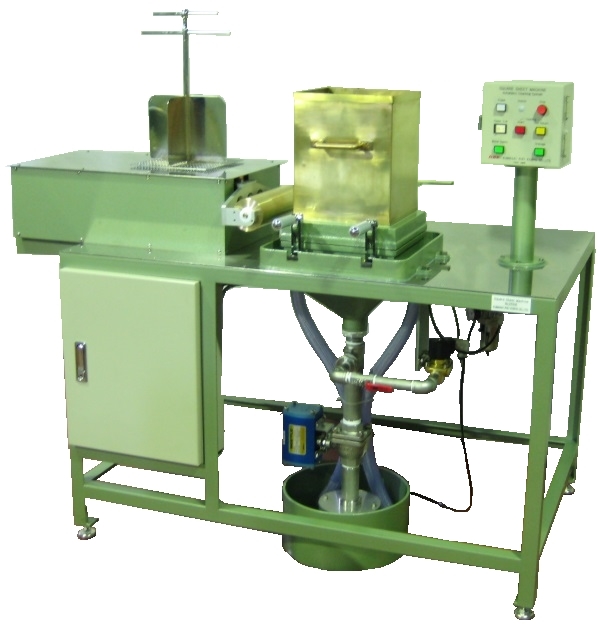

Square sheet machine (with automatic couching system)

This machine has been developed to entirely automate couching process in square paper making, aimed at reduced workload of the operator and variance in physical data. The solenoid valves for water feed and drainage enables easy operation with push buttons.

参考規格 :

Square sheet machine (with automatic couching system)

Specifications

Paper making size	250×250mm	Couch roll	83.5mm in diameter, 280mm long, weight 13kg
Number of couching operations	5 (1 to 9) by presetting counter	Couching speed	200 （100 to 300）mm/sec.
Accessories	couch roll, couch plate, agitator, step	Power souce	100/110VAC 50/60Hz 1A
Air source	0.3MPa	Outer dimentions	1,650×850×1,370mm
Instrument weight	255kg
