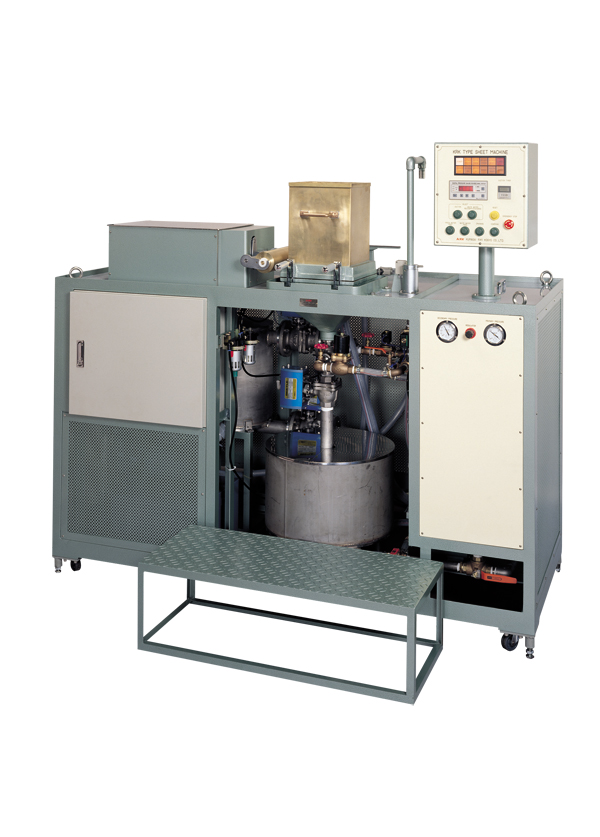

Sheet machine with white water recovery and suction devices (with automatic couching system)
- Pulp/Chip/Sheet former / Sheet former
- Product Number No.2558-I
- Pulp/Chip/Sheet former / Sheet former
- Product Number No.2558-I
Kumagai Law of nature machine
Industrial company > Product information > Pulp/Chip/Sheet former > Sheet former > Sheet machine with white water recovery and suction devices (with automatic couching system)
The paper sheet handmade according to the method given in the ISO standard is significantly different in formation, fiber orientation and strength from the sheet made by Fourdrinier machine (practical machine). The No.2558-I was developed to provide a paper-making condition similar to the practical machine in the dewatering process. The white water recovery device recovers fine fibers and filler, and the suction device sucks away the water at a negative pressure. A wide range of paper-making conditions is available. It is also possible to make paper as with the standard square machine. With this machine, the couching operation is automated, alleviating workload of the operator.
参考規格 :
Specifications
| Paper making size | 250×250mm or φ159mm | White water chest | capacity 120L, material SUS-304, with agitator |
| Vacuum tank | SUS-304 | Vacuum degree | max. 600mmHg |
| Vacuum meter | digital | Vacuum pump | 75L/min., three-phase 200/220VAC, 0.4kW |
| Number of couching operations | 5 (1 to 9) by presetting counter | Couching speed | 200 （100 to 300）mm/sec. |
| Power souce | three-phase 200/220VAC 50/60Hz 10A | Air source | 0.5MPa |
| Outer dimentions | 2,000×980×1,600mm | Instrument weight | 670kg |
