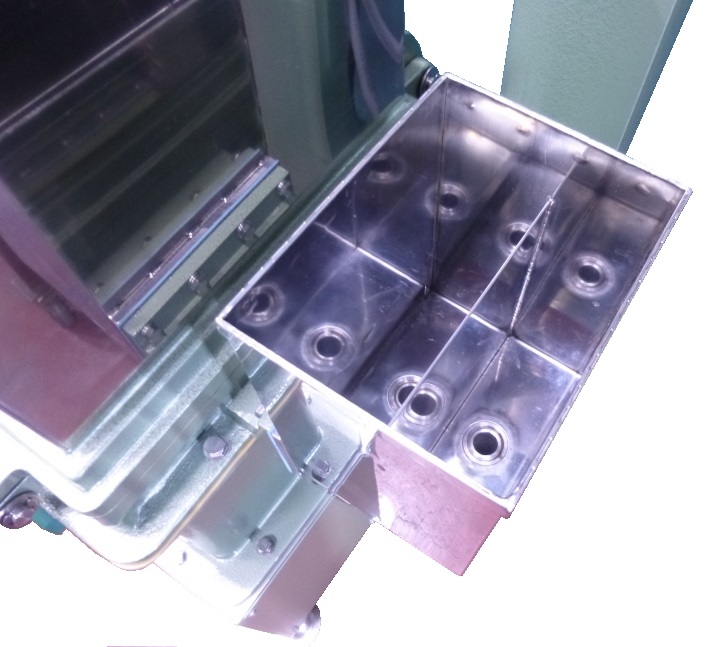

Flat screen (standard type)

  • Pulp/Chip/Sheet former / Screening
  • Product Number No.2625

This equipment is used for refining digested pulp and measuring knots. The mechanism gives vibration to digested pulp placed inside the screen box through the bottom screen resting on the rubber diaphragm, sucks them toward the screen plate and discharges them, alternately repeating, promoting passage of digested fibers and sifting through good-quality pulp.

参考規格 :

Flat screen (standard type) Flat screen (standard type) Flat screen (standard type) Flat screen (standard type)
  • Flat screen (standard type)
  • Flat screen (standard type)
  • Flat screen (standard type)
  • Flat screen (standard type)

Specifications

Screen box 304×254×220mm Screen plate slit or round hole 6/1,000” to 50/1,000” or 2 to 5mmφ
Vibration frequency of diaphragm 700/min. Amplitude 3.2mm
Gate height 100mm Power souce three-phase 200/220VAC 50/60Hz 2A
Outer dimentions 600×650×1,200mm Instrument weight 106kg
