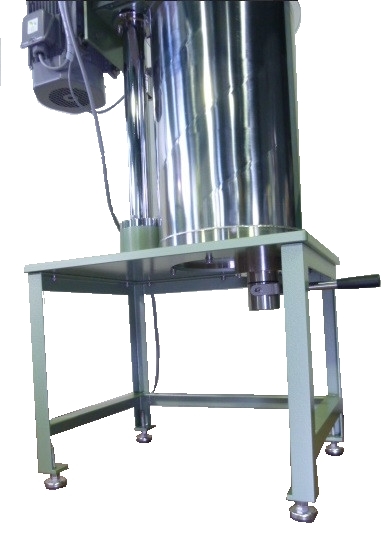

Large size pulp disintegrator (30L)

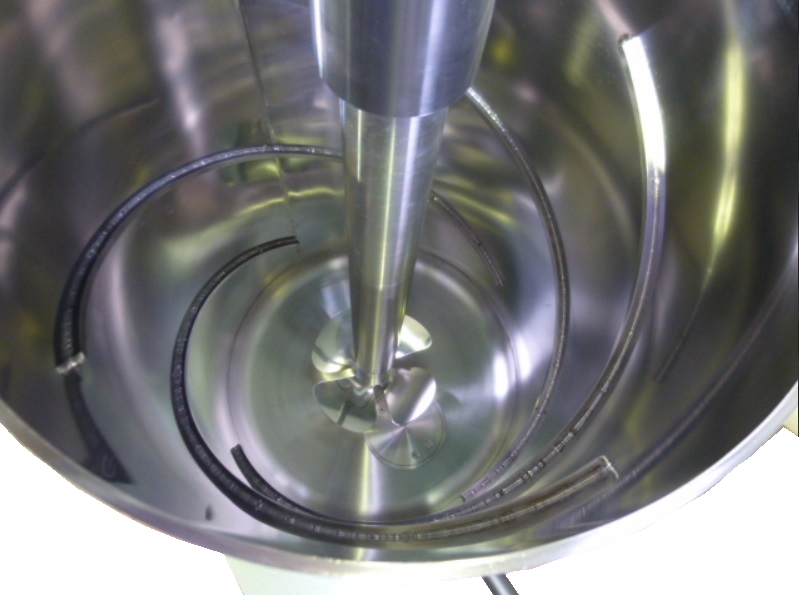

Since the slurry is discharged through the port in the container bottom, it is not necessary to place and remove the container, facilitating operation.

参考規格 :

Specifications

Capacity	30L	Concentration	max. 2.5%
Specimen tank	fixed on the specifically designed support	Rotation speed	2,000rpm
Disintegration time	by setting the timer	Motor	three-phase 200/220VAC 2.2kW　9A
Discharge port	52mm in diameter (with one-touch lever)	Outer dimentions	500×750×1,440mm
Instrument weight	157kg
