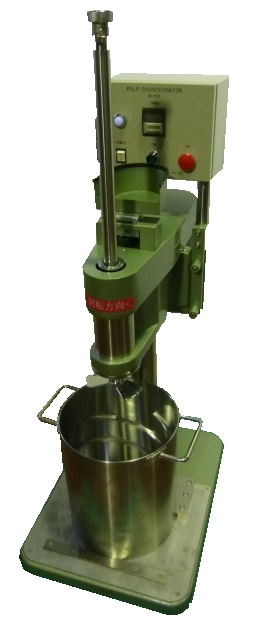

Large size pulp disintegrator
- Pulp/Chip/Sheet former / Disintegrator/Pulper
- Product Number No.2531
- Pulp/Chip/Sheet former / Disintegrator/Pulper
- Product Number No.2531
Kumagai Law of nature machine
Industrial company > Product information > Pulp/Chip/Sheet former > Disintegrator/Pulper > Large size pulp disintegrator
This machine is used in the same manner as the standard pulp disintegrator. It is suitable for disintegration of a relatively large amount of specimen. It is indispensable for pre-treatment for paper sheet making.
参考規格 :
Specifications
| Capacity | 5, 10, 20L | Concentration | max. 2.5% |
| Disintegration time | by setting the timer | Motor | three-phase 200/220VAC 0.75kW to 2.2kW |
| Outer dimentions | 5L: 645×420×680mm 10L: 670×420×800mm 20L: 730×475×950mm |
Instrument weight | 5L: 120kg 10L: 126kg 20L: 143kg |
