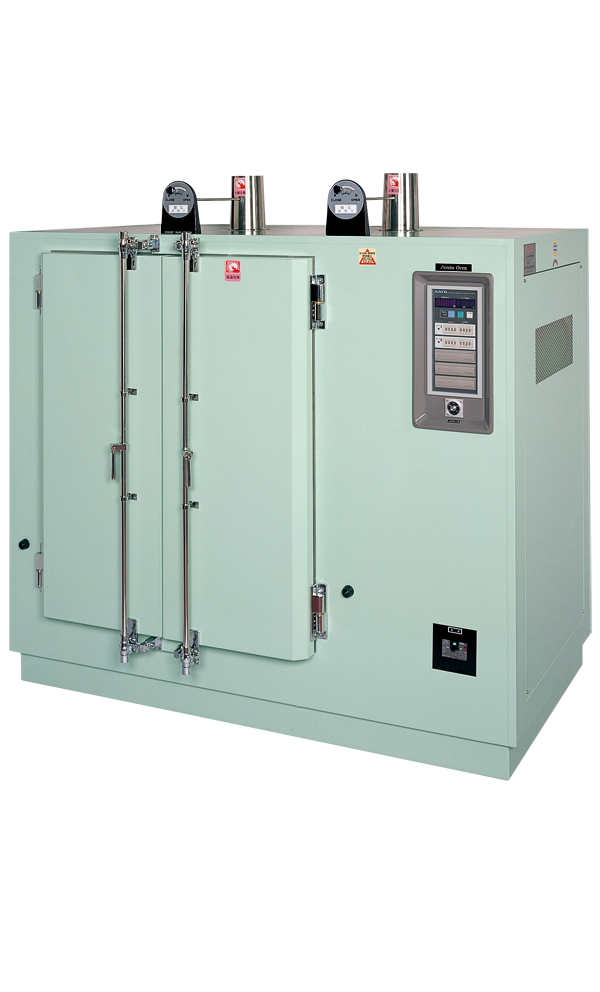

Dryer for measurement of chip moisture content
- Pulp/Chip/Sheet former / Chip classifier
- Product Number No.2607
- Pulp/Chip/Sheet former / Chip classifier
- Product Number No.2607
Kumagai Law of nature machine
Industrial company > Product information > Pulp/Chip/Sheet former > Chip classifier > Dryer for measurement of chip moisture content
This dryer is used for measuring the moisture content of wood chips. Chips are placed inside the dryer for a certain length of time so that moisture content may evaporate. The moisture content is checked based on the difference between the constant mass weight of the chips and the weight before drying. In order to maintain unified temperature distribution inside the dryer, a forced circulation system is adopted for heated air, ensuring measurement of the moisture content after chips are evenly dried.
Referential standard: J.TAPPI No.2
Referential standard: J.TAPPI No.2
参考規格 :
- [TAPPI]JTAPPI?2-2000
Specifications
| Chamber inner dimensions | 880×660×1,100mm | Specimen dish | 220×570×50mm wet chip 1kg or 3kg 1 row, 10 stages, 30 trays |
| Material of inner wall | SUS-304 | Material of tray | SUS-304 |
| Maximum temperature | 200℃ | Service temperature | 105℃ |
| Temperature control | ±1℃ | Drying time | 8 or 4 hours |
| Timer | max. 24 hours | Optional | external alarm terminal |
| Power souce | three-phase 200/220VAC 50/60Hz 40A | Outer dimentions | 1,500×840×1,560mm |
| Instrument weight | 680kg ※We also fabricate moisture testers with specifications other than the above different total dry volumes and installation space conditions |
