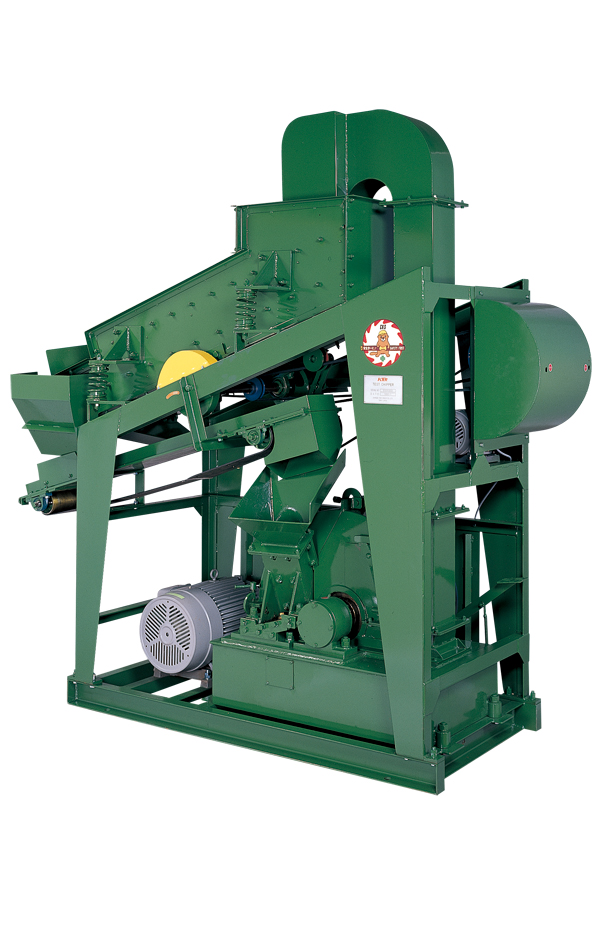

Compact chipper (with vibrating screen)

In the pulp manufacturing process, it is required to have a cooking liqueur permeate to the center of the wood as quickly as possible to enable quick and unified digestion. For that purpose, this chipper is designed for laboratory use to make wood chips of unified dimensions, helping prepare various chips containing different kinds of resin. In operation, wood is pushed diagonally against the rotary disc provided with a cutting knife, which cuts off the tip of the wood. Then, produced chips are air-blown upward to the chip screens. Then, the chips are classified through two-step vibrating screens so that complying chips are sent to the chip collector rack and large-sized ones are conveyed upward on a belt to be thrown into the chipper's slot again.

参考規格 :

Specifications

Chipper knife	3 pieces (all stainless steel)	Diameter of disc	760mm
Feed port	140×100mm	Rotation speed	660rpm
Screen box	700mm×2,000mm upper screen 40mm, lower screen 6mm vibration with coil spring: frequency 1,000/min.	Chipper driving motor	three-phase 200/220VAC 50/60Hz 22kW
Screen driving motor	three-phase 200/220VAC 50/60Hz 0.75kW	Capacity	4.5?/h
Outer dimentions	2,800×1,200×3,000mm	Instrument weight	800kg

To address the creation of new products that trend seek

Pulp/Chip/Sheet former / Chip classifier

Product Number No.2605
