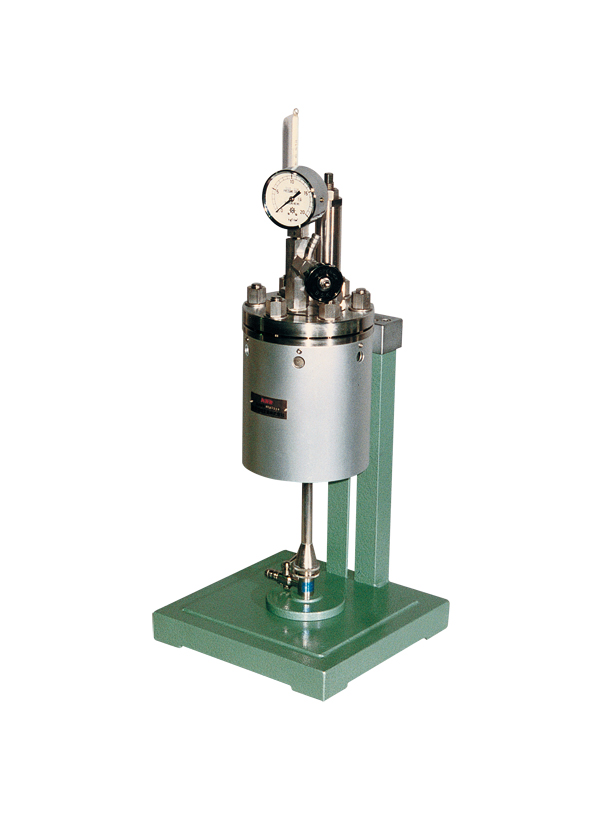

Mini-size autoclave

This autoclave is for timber chip cooking tests in a university laboratory, etc. As such, the cooking chamber is small-sized and can be heated on a gas burner, which is suited for a simple pulping experiment. By removing the fixing pins supporting the chamber body, it can be shaken sideways, helping even permeation of the liquor into chips.

参考規格 :

Specifications

Capacity	500cc	Material	SUS-316
Pressure	max. 1.5MPa	Pressure gauge	2MPa
Heating	by gas burner	Accessories	safety valve, gas purge valve, thermometer pocket, rod-type mercury thermometer 300℃, Bunsen burner
Outer dimentions	240×240×540mm	Instrument weight	10kg
