Gurley stiffness tester (automatic type)

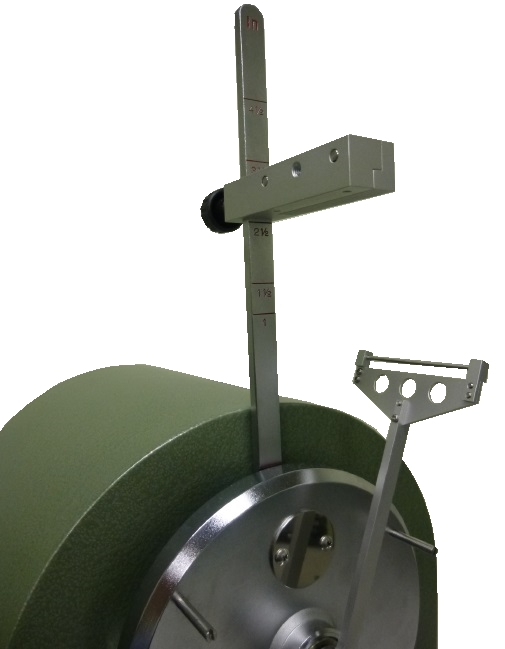

This machine automatically measures the stiffness of paper, film, nonwoven textile, etc. By changing the specimen size and selecting a weight on the pendulum, it enables measurements of a wide range of stiffness. One end of the specimen is held on the movable clamp. The other end is set at a position so that it overlaps the top of the pendulum by 6.4mm. Then the arm with the specimen is slowly moved to deflect the specimen as the load increases, thereby tilting the pendulum. At last, specimen detaches from the pendulum. The maximum rotation angle at that detaching moment is captured by a sensor, to calculate and display stiffness. This machine releases the operator from tiresome calculation involving the specimen size and weight and position of the mass, as with the conventional tester, permitting accurate and rapid measurements, thereby increasing productivity in research and develop activities.

参考規格 :

[JIS]L-1085-1998,L-1096-2010
[TAPPI]T-543om-22

Gurley stiffness tester (automatic type)

Specifications

Measurement range	1.39～450,000mg	Specimen length	1”,　1 1/2”,　2 1/2”,　3 1/2”,　4 1/2”
Specimen width	1/2”,　1”,　2”	Pendulum mass	weight and position （1”, 2”, 4”） of the mass set on the pendulum are selected, depending upon the flexual strength of the specimen

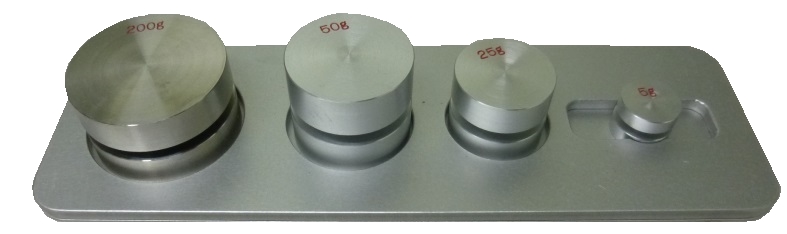

Direction of specimen	Three directions can be set: MD, CD, and non-directional (for recording)	Weights	5, 25, 50, 200g
Load detection	The inclination angle of the pendulum is detected, and sine of the angle is multiplied by a constant that depends upon the measurement conditions, to determine the load.	Zero point automatic correction	Correct themachine posture, and adjust the pendulum pointer to zero on the scale, and push the zero point adjusting switch.

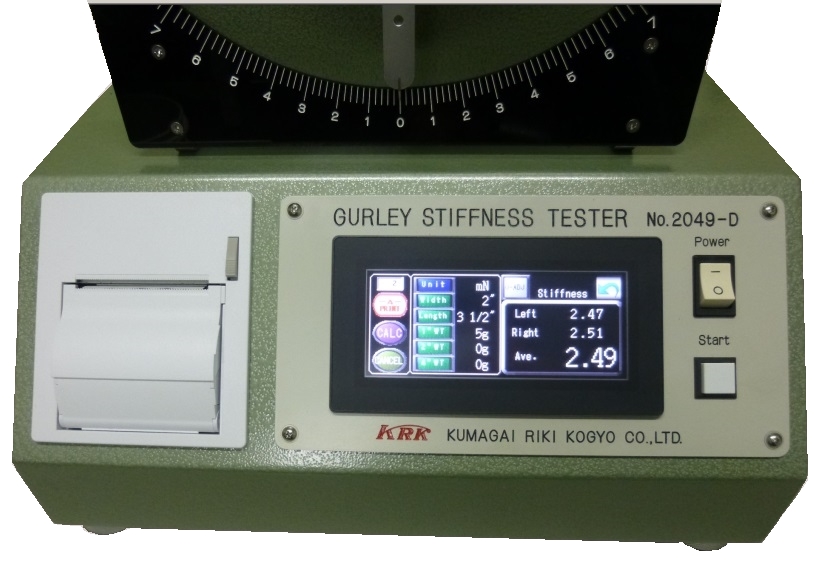

Bending speed	rotation speed of the movable arm: 2rpm	Display of the results	left and right bending, average
Power souce	100/110VAC 50/60Hz 1A	Outer dimentions	335×370×605mm
Instrument weight	15kg
