KRK crush tester (simplified type)

This tester measures compression strength of liners, corrugated mediums, corrugated board and small-sized containers. It determines resistance against compression in various forms. It is designed for simplified measurement of compression strength, and a load cell is employed for load detection, achieving accuracy and reproducibility.

参考規格 :

[JIS]P-8126-2005,Z-401,Z-402
[TAPPI]T-808,T-809,T-811,T-818,T-821, ISO 12192

Specifications

Test items	CMT, FCT, RCT, ECT, PAT, CCT （optional parts are necessary）	Maximum load	2,000N
Load detection	load cell	Loading	square screw for upward/downward motion
Movement speed	12.7±0.5mm/min.	Stroke	90mm

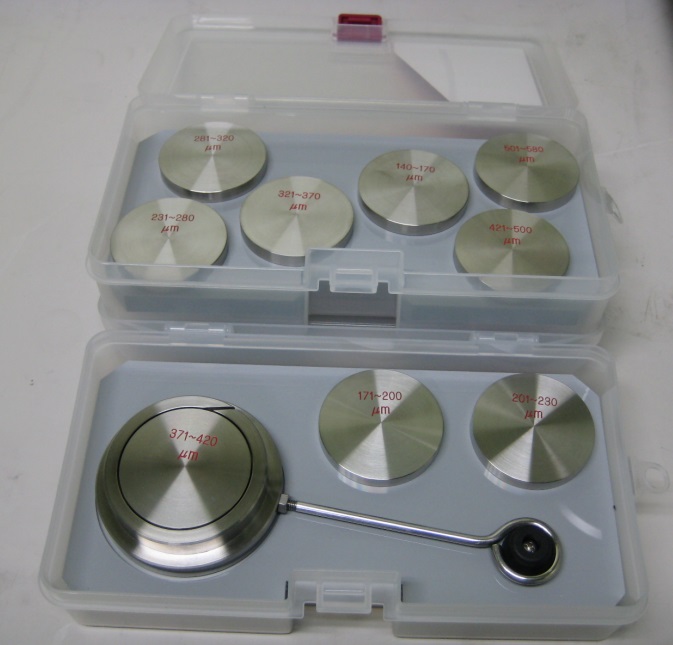

Specimen size	12.7mm wide, 152.4mm long （ring crush test）	Standard accessories	holders for ring crush, for each thickness, 9 pieces (standard)
Power souce	100/110VAC 50/60Hz 3A	Outer dimentions	430×370×560mm
Instrument weight	90mm
